What spiega is about

agentic local workflow

agents as support

We want to find the best setup where agents are actual helpers and not an uncontrolled crowd. I recall this old movie that gives the feeling of the emotion of creating an agent, instruct it and then finally relax while it works for you.

You then realize the agents misinterpreted your command and you start creating new ones to control your system but then you have a crowd you cannot control and you rush reading the source code trying to understand what is going wrong but the source code is too large and difficult to understand.

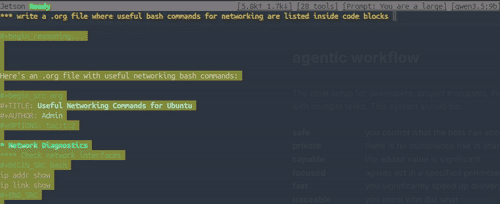

org-mode

Org-mode is the best place where humans meet agents. If markdown is a cookbook where you list the ingredients and the instructions org is a spell book where you directly invoke your commands. .html is a dynamic text file which is easy to parse for an agent but reach in features for a human. From simple notes you create:

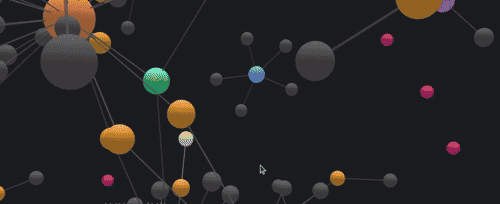

graphs
notes get linked together, they build a database, you query, navigate a graph

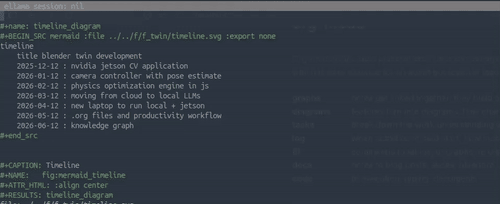

diagrams
features turn into diagrams, flow charts, mindmaps
tasks
break down the work understanding what features need to be built
log
when activities should start, how much they last, gantt, kanban
BI
commands to tables, to graphs, to diagrams
docs
notes to blog posts, slides, blueprint
code
to execution, piping, documents


agentic workflow

The ideal setup for developers, project managers, innovators would be to have local assistants to support with multiple tasks. This system should be:

safe
you control what the bots can access and prevent leaks or risks
private
there is no compliance risk in sharing ideas or code
capable
the added value is significant
focused
agents act in a specified perimeter and stick to the task
fast
you significantly speed up delivery time
traceable
you know who did what
reliable
you don’t need to oversee the tasks
cheap
you own and control costs if any
reproducible
the essential information to reproduce the system anytime (prompts too)
environment
with public LLMs you don’t consume only computing but networking, caching, storage…


set up

To achieve that I worked with this configuration:

local
all models run locally, rare internet access
containers
coding assistants run in containers with selected volumes
tools
I select the tool list the agent can see
context
I provide each assistant a clear reference to the context
directives
the agents are aware of expected behavior
performance
local models are not the fastest, managing context and access helps a lot

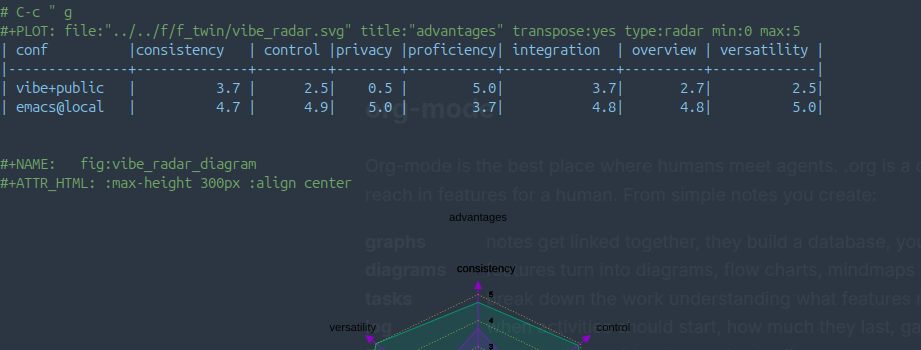

conf consistency control privacy proficiency integration overview versatility
vibe+public 3.7 2.5 0.5 5.0 3.7 2.7 2.5
emacs@local 4.7 4.9 5.0 3.7 4.8 4.8 5.0

vibe_radar.svg

side benefits

While working at this set up I realized many side benefits:

less search
rarely I need the web for API docs unless I need to learn something
less dependencies
I cut many software and use only emacs, blender and firefox
less archive
I basically only version control few .html files, the rest is generated from them
less confusion
agents don’t need to parse scattered information
less processing
agents don’t need to parse heavy documents nor pictures
less resources
simple LLMs with proper context perform as their much bigger cloud counterparts
less tokens
well configured coding assistants don’t need extreme performant models
less code
capable .html files reduce the complexity of software integration


improved workflow

What is even more impressive is that I realized my workflow flipped over:

document first
the start is to write down the ideas and the environment
knowledge base
let the agent write detailed documentation about the project reference
consistency
every node of the knowledge graph increases consistency in the work
background execution
let agents execute tasks while you focus on the project
log and tag
as you write the components get linked together and are easier to search
present
you can present anytime given the multiple exporting options into blog posts and slides


.html files

The improvement comes first of all with .html files which are super powered text files. Compared to markdown you can build many actionable items and pipe everything together. Some features :

agenda
to schedule a task or to set an alert
tags
to specify meta information
logbook
the time spent on tasks
status
whether an action is done or pending
nodes
tag every element to create interconnections
code
define code to execute
visualize
plots, diagrams, gantt, kanban… from text
local org files
open new buffers from shell

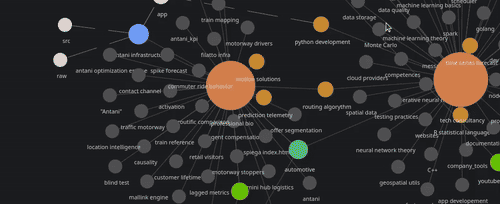

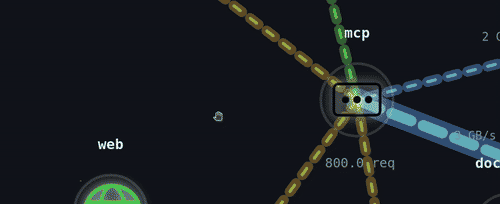

roam
organizes the .html node information into graphs
spreadsheet
formulas on tables

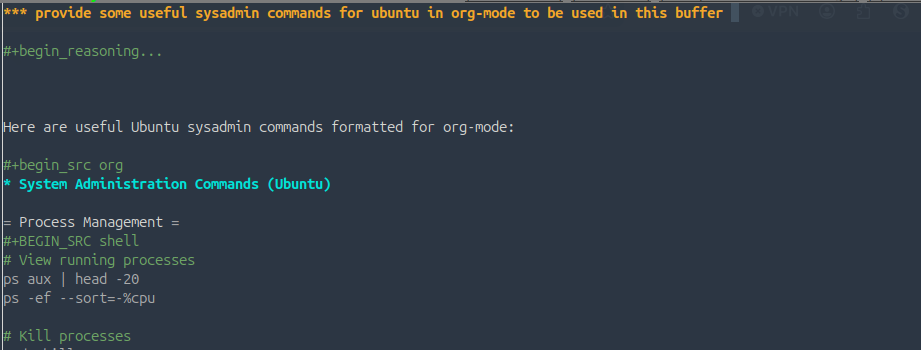

.html and agents

Agents express themselves at best within .html files:

minimal context
they can access all links, numbers, software within few bytes
less distraction
images, presentations and big files are outside of agent reach
update
they keep all information updated following all links and nodes in the graph
buffer integration
they literally edit the file with you
parallel
you can use multiple backends to use additional local resources

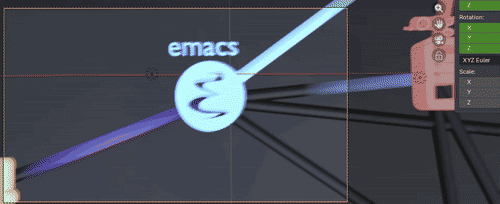

.html and emacs

Emacs is the most versatile text editor, it has an overwhelming option of integration and configuration. It takes time to configure it but the productivity speed is unbeatable. I tried IDEs but I find the UI too confusing to concentrate and they force you to work in a single manner. Emacs is the best option for .html too:

export
many emacs packages export the files into blog posts and slides
babel
you can link system programs to the execution of code blocks
roam
in the background all the information you work on are linked together
integration
.html connects with all the tools like agenda, web-search, journal …
tools
emacs allows agent to use tools

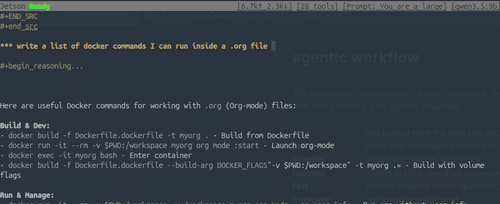

emacs and LLMs

There are multiple configurations to include LLMs in emacs:

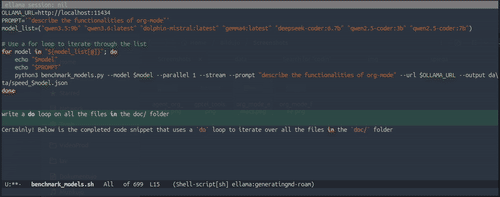

ellama
for reasoning and structuring the project and for code examples in any buffer
gptel
for the integration with mcp
gptel base
base package

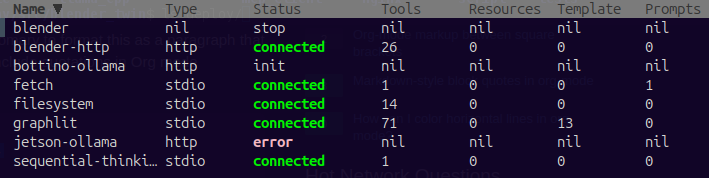

mcp.el
start the hub

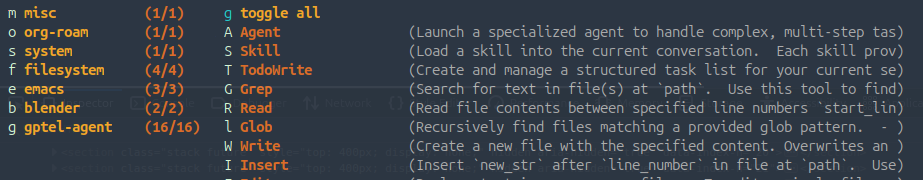

custom gptel tools
user defined tools
gptel-mcp
integration between the packages
mcp
for adding my own tools and external mcp

More on

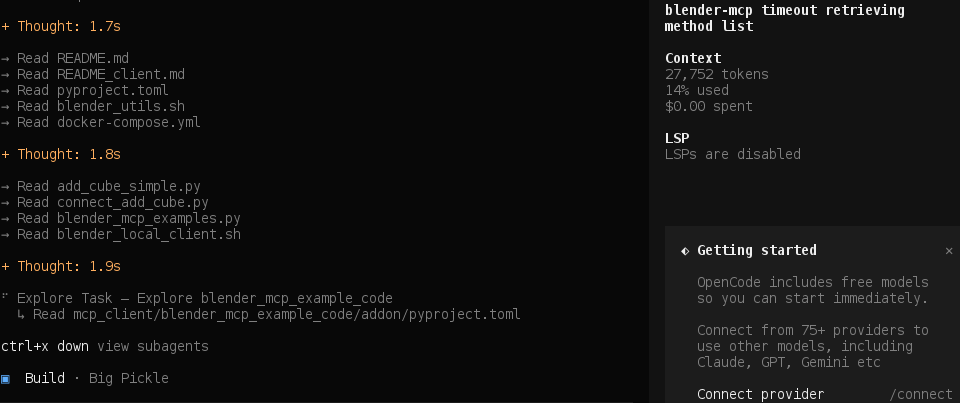

coding assistant

Language models without IDE capabilities have limited added value. We can in principle build a coding assistant within emacs but I prefer by now to use different coding assistant with different capabilities. My workflow:

simple tasks
and test every progress. Agents taking too many autonomous decisions are difficult to oversee
little interpretation
agents need to understand and wait for agreement

Well configured coding assistants don’t need extreme performant models

pi agent
pi-coding-agent the one I currently use the most, quick and simple
aideremacs
aider too many interactions, difficult UI
opencode
opencode I appreciate it’s more careful about running certain operations but it’s pretty slow

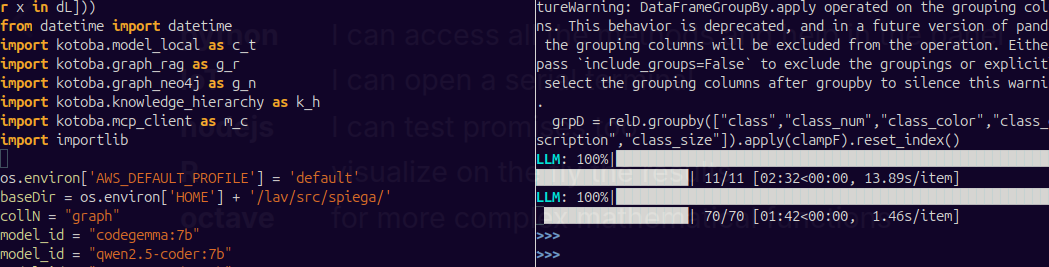

code REPL

Emacs has many code REPL features were you can send lines of code and test the execution and the data transformation. I mainly use REPL with:

python
I can access all the methods and help in the panel
IoT
I can open a serial terminal
nodejs
I can test promises too
R
visualize on the fly the results
octave
for more complex mathematical functions


todo project management

Each section can be linked to a data by inserting an agenda entry [C-c .]. We can put:

dates
<2026-06-17 Wed>
past dates
[2026-11-01 Sun]
date range
<2026-06-26 Fri>–<2026-07-13 Mon>
effort
C-c C-x e (org-set-effort)
schedules
SCHEDULED: <2026-07-28 Tue> - elisp:(org-schedule)
deadlines
DEADLINE: <2026-07-22 Wed> - elisp:(org-deadline)
recurrent tasks
pay the server DEADLINE: <2005-11-01 Tue +1m>
log activities
elisp:(org-clock-in), elisp:(org-clock-out), elisp:(org-clock-in-last), elisp:(org-clock-report)
timer
elisp:(org-timer-start), elisp:(org-timer-set-timer), elisp:(org-timer-stop)
todos
elisp:(org-todo-list), elisp:(org-agenda-list-stuck-projects)

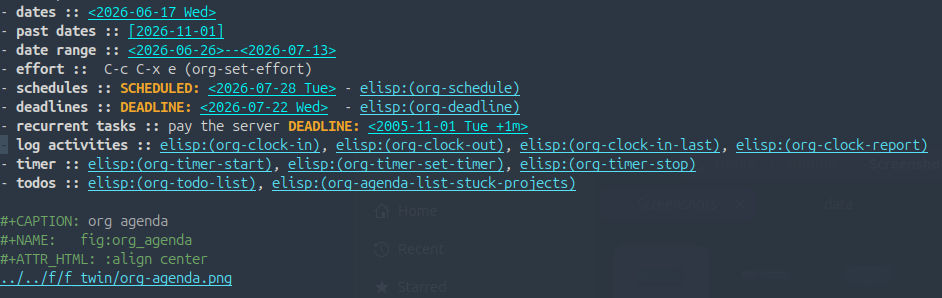

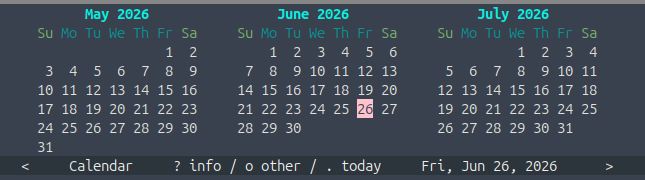

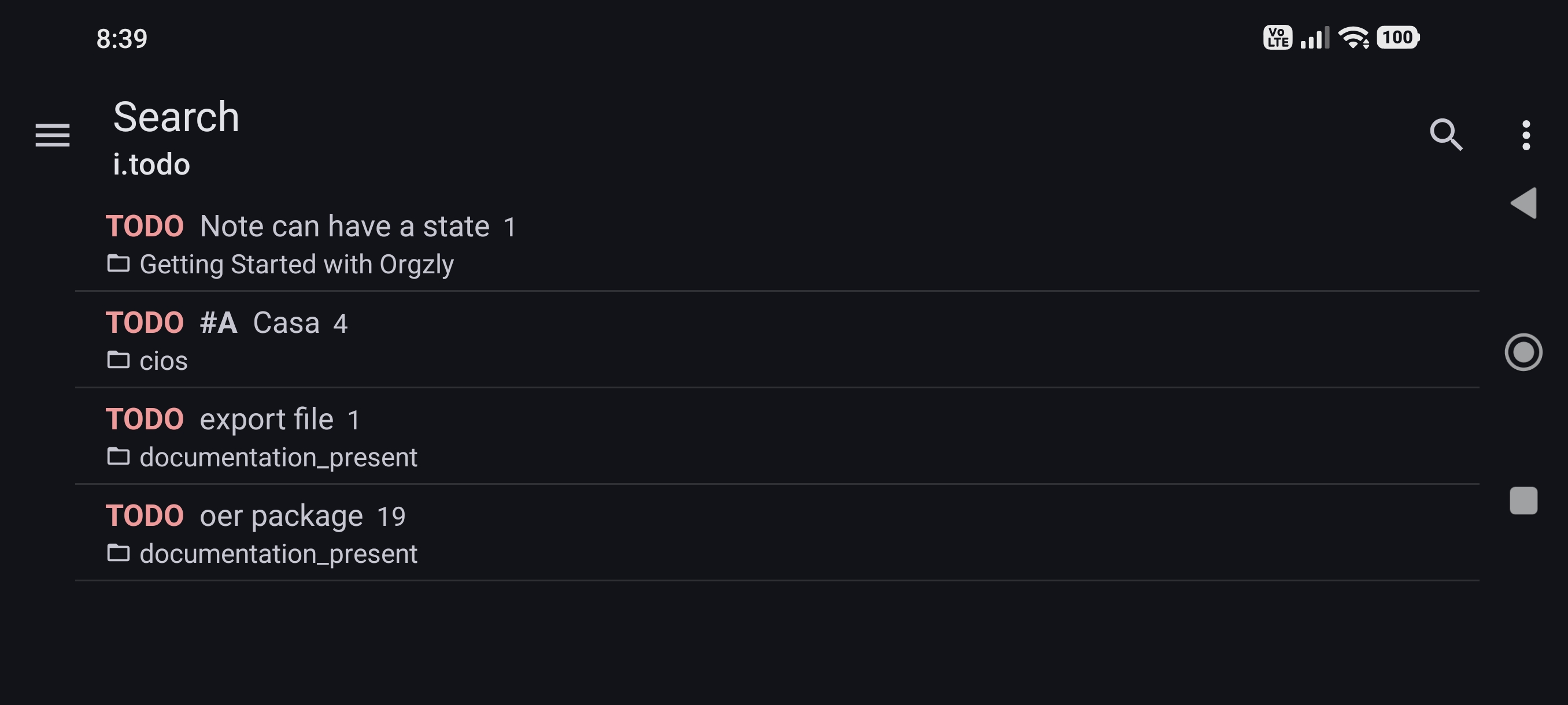

Figure 1: org agenda

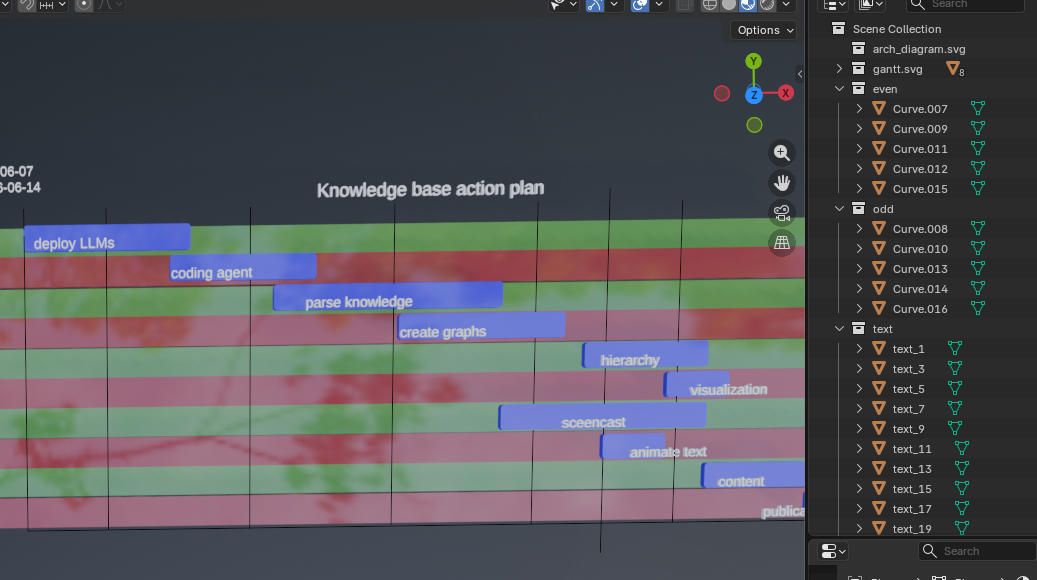

gantt

Out of the agenda we can create a gantt


gantt
    dateFormat  <YYYY-MM-DD>
    title  Knowledge base action plan
    excludes  weekends

    review : vert, v1, <2026-06-22>, 1d

    section local models
        deploy LLMs          :done,  deploy, <2026-05-20>, 7d
        coding agent         :done,  deploy, <2026-05-27>, 14d
...

gantt_agenda.svg

Figure 2: Gantt representation of the project

Kanban

From the running task we can create a kanban

kanban
  Todo
    [compare model serve]
    docs[benchmark vllm, llama.cpp and ollama]
  [In progress]
    id6[blog posts about the local implementation ]
  id11[Done]
    id5[agent confs, org files]

kanban_agenda.svg

development workflow

Let’s now come with an example workflow:

deploy
start your containers and provide access only to project resources
describe
open a .html file and start describing your project
questions
who is the user, what is the tech stack, what is the environment
specify
say where the project should run
knowledge_base
agents to collect all the sources regarding your tech stack and final goal
virtual team
describe the competences required, rules, tools and expertise
MCP
the MCP server will add the necessary integration for the project
orchestrate
define and distribute the tasks across agents
present
if everything is done the .html way a button will produce slides and blog posts

Each of this action will use LLMs to expand on the topic after a simple instruction.


deploy

Everything is in docker, the main services are:

nginx
web server defining the network `webserver-net` too
ollama
to serve LLMs
vllm
to serve LLMs
llama.cpp
to serve LLMs
mcp_server
custom MCP server for the IoT devices
mcp_client
tests on the running sever
aider
coding assistant
ansible
to manage remote deployments

I can stop a container anytime in case of issues with resources.


describe

Take a bit of time to describe the project, the agents will do the rest:

audience
who should use the product
UI
what kind of interaction is foreseen
deployment
what is the product stage: MVP, prototype, test, deploy, enrollment?
tech stack
what libraries you want to use
hardware
on what hardware should the product run

Define those points and ask an assistant to create a local documentation of all technology listed which will be used for the project.

Given the project details prepare one markdown document in the folder `knowledge_base` where you explain what that technology, library or tool is useful for our purposes.

virtual team

We need now to instruct our coding assistant to create a virtual team and we specify all the files needed for the agent to gain the proper context.

environment
write SYSTEM.html and SYSTEM_APPEND.html
tools
define SKILLS.html
expertise
define AGENTS.html
overall scope
README.html
behavior
.rules
models
to use models.json

Given the project details write an AGENTS.html file where you describe what each agent should be capable of and what is the expected expertise


safety

Agents are really powerful and we want to hold control on what they do by limiting permissions.

container
the agent can access the project directory only ${HOME}/lav/src/:${HOME}/lav/src/
environment
no passwords, no keys, no certificates accessible
permissions

the permissions are set in Dockerfile no sudo

RUN usermod -l newuser ubuntu &&  groupadd newuser
USER newuser
local
I can even restrict internet access for the LLMs
middleware
build custom middleware to access external resources

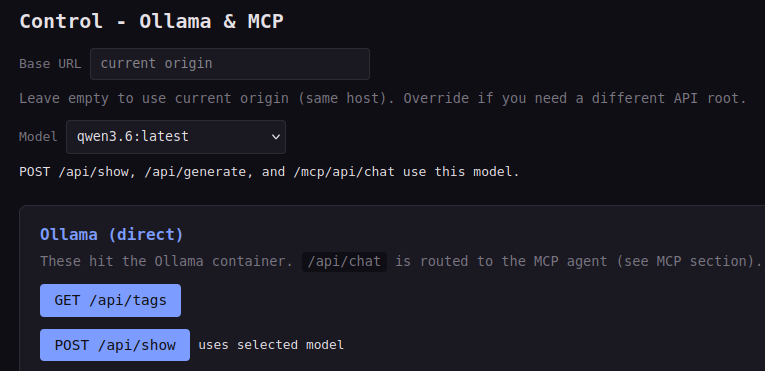

MCP

In some projects is important to add external capabilities to the agents. In a recent project I added for example:

blender
connect to a running blender instance
cameras
describe what a remote camera sees

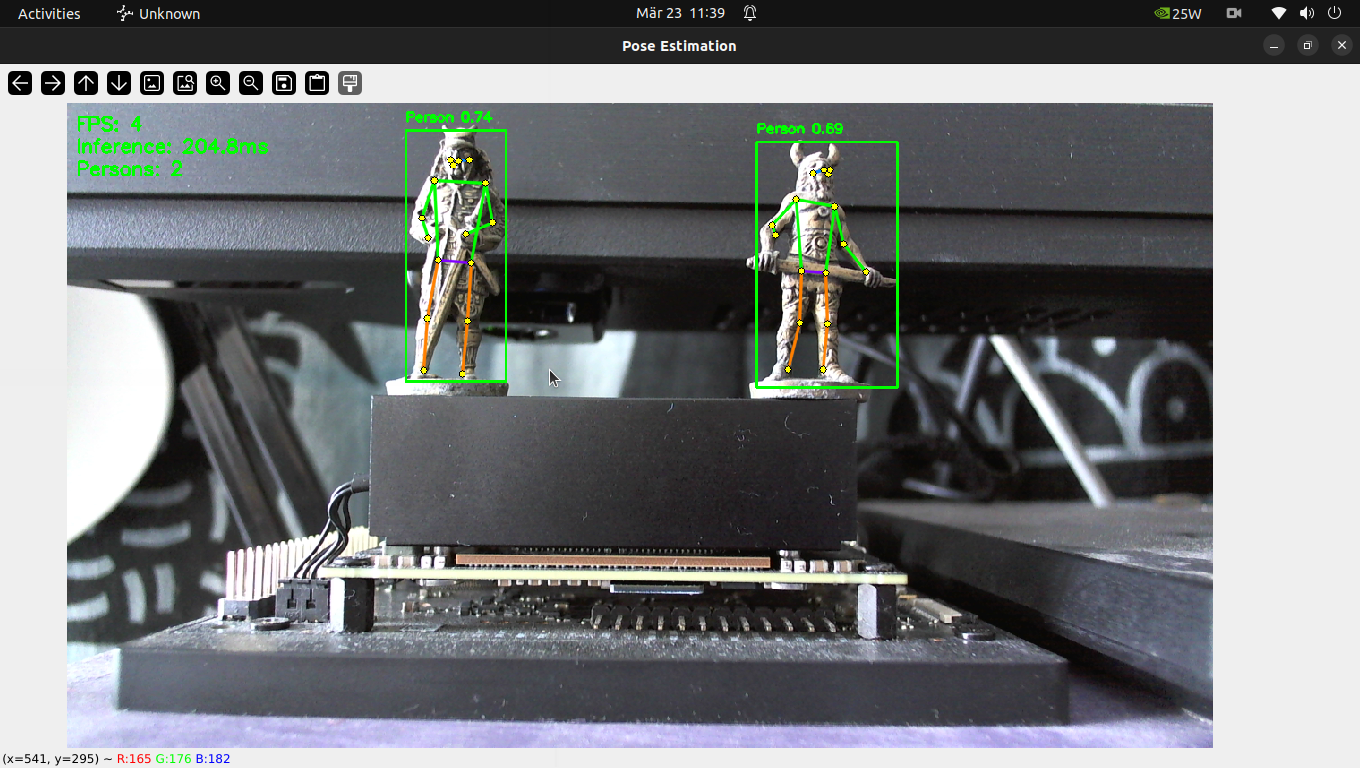

posture
apply a ML model for posture recognition
cd ~/lav/src/blender_twin/deploy/mcp_client/
python3 test_cube.py
OK — cubes in scene: []


tools

LLMs can create almost anything from prompts but they work much more efficiently connecting with tools:

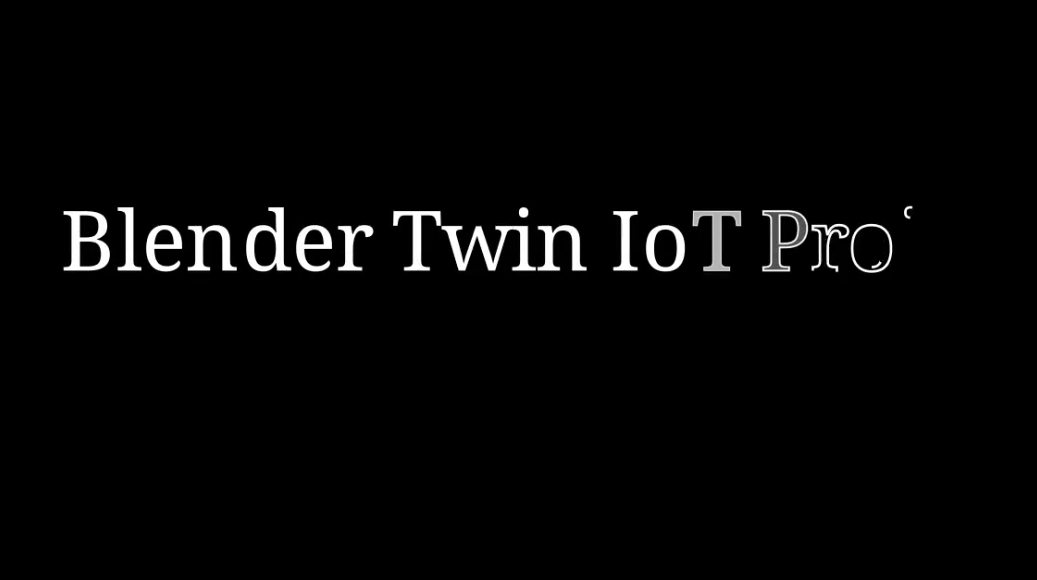

animations
blender, manim
diagrams
mermaid, graphviz, tikz, wavedrom, plantuml
music
lilypond
vision
opencv, colmap, brush
electronics
circuit2tikz

Connecting LLMs with tools allow additional training for fine personalization of the content


orchestrate

Ask an LLM to define the task in a plan.html file which we can review. LLMs can use internal .html features:

section
what is the task about
agenda
when it should start
effort
expected duration [C-c C-x e] (org-set-effort)
logbook
start the time for that section (org-clock-in) (org-clock-out)
summarize
findings for that task
gannt
update the gannt (text) for the current stream
kanban
update the kanban (text) for the current stream
code
write the tests inside the .html file and re-write the tasks based on the output
test and approve
mark the task for human approval
review
the task list


present

If you write as you go and the agents keep updating the knowledge base org-roam does the rest. You can with simple scripts produce:

blog post
description of the project for a tech audience
slides
for a business audience
blueprint
for technical use and implementation


graph rag

Graphs are really useful to visualize the status of the project but sometimes the details are too heavy to be processed and therefore is important to perform some hierarchical clustering as explained here: knowledge graph.


animate

Slides and images are important but sometimes is easier to explain in a video. For that I created a d3.js network explorer which takes the network links and nodes and can export to blender.


animate graphs

The images from the dashboard can be exported to blender to create 3D animations.


animate diagrams

We can as well animate the mermaid diagrams we have created for the documentation


animate manim

We can as well animate using the manim python library with the help of LLMs to write their functions


publish

(org-reveal-export-to-html)

agent_workflow.html

mv $outF ~/lav/siti/spiega/slide/$outF
#+ATTR_HTML: :width 40% :height auto
[[./image1.png]]
#+ATTR_HTML: :width 40% :height auto
[[./image2.png]]
#+html_block:
<div style="display: flex;">
<img src="./image1.png" style="margin: 10px;">
<img src="./image2.png" style="margin: 10px;">
</div>
#+end

Image 1

Image 2

sync

All files are synchronized to an online server and can be consumed from a simple adroid app so we can monitor the status of the work anywhere.


Date: 2026-06-22 Mon 00:00

Author: sabeiro

Created: 2026-06-29 Mon 16:42

Validate
